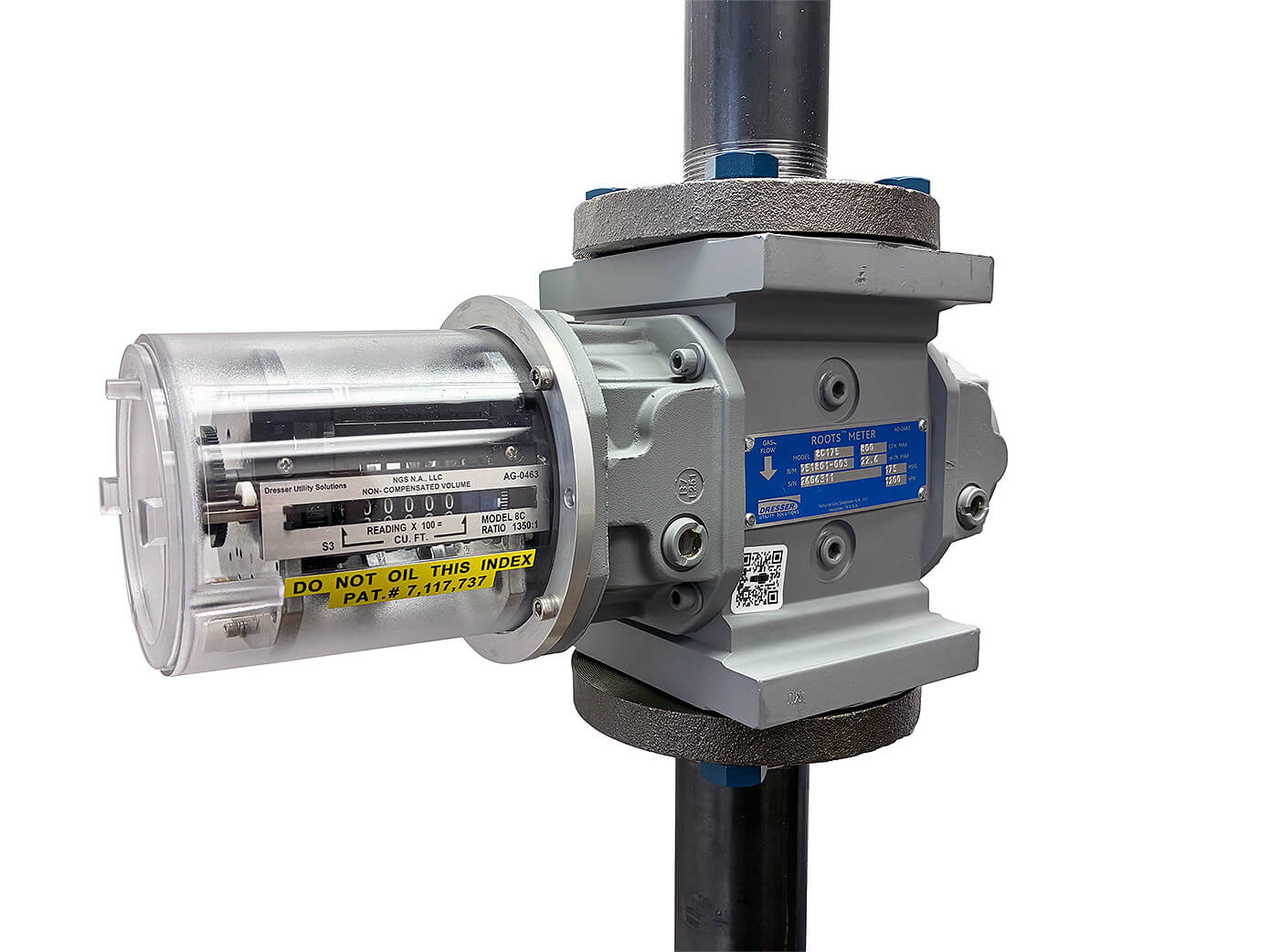

8C175CTR Roots Gas Meter

$1,656.00$1,715.35

P/N: 055207-013 / 055275-011

SKU: 055207-013 Category:

Description

Counter Version

The Dresser Utility Solutions Flagship Model 8C175CTR Roots Gas Meter is unchallenged in both accuracy and endurance. Easily view non-compensated readings from a local 5-digit Mechanical Odometer that requires no power.

8C175CTR Roots Gas Meter

  • Flow Rate: 800 ACFH (8 Hundred Thousand BTU)
  • Connections Available in 2″ ANSI 125/150# Flat Face Flange, or 1-1/2″ NPT Nipple Piping (yellow zinc plated)
  • Turndown Ratio: 1350:1
  • Max Pressure: 175 PSI
  • 5 Digit Mechanical Odometer
  • Non-Compensated / No Outputs
  • 4 ounce Meter Oil Included

Easy To Install.

No straight pipe requirements. Furthermore all the B3 Series gas meters we stock are fitted with 125/150# Flat Face Flanges for quick removal.

97% Accurate At Only 3% Only Flow!

What’s your application? Our meters are very accurate even at low flows!

Very Low Pressure Differentials.

First lowering the max operating speed provides lower pressure differentials for low pressure applications. Secondly extending the meter’s life. Thirdly saving you money over time.

Weather Resistant.

There’s no doubt these meters can handle tough conditions! As a result this unit will easily handle dirt, rain, ice and snow. Additionally having security knowing your meter will handle tough conditions.

Simple Display Design.

A truly easy to read local Mechanical Odometer requires no power to read. On the other hand since they’ve removed the Oil from the cover, things have improved immensely.

Expandable.

Needs change over time. For this reason we offer Dresser Accessory Hardware Conversion Kits for easy install of remote capabilities. Consequently helping you if you need to change anything in the future. Check out the Riotronics Pulse Adapter Kit to easily add a dry contact output.

Prover Tested.

All meters will ship with signed documentation from the factory workers at Dresser. In fact a final analysis your certified 8C175CTR Roots Gas Meter is tested by industry leading technology.

Lifetime Tech Support.

We are an official certified representative & stocking distributor for Dresser Utility Solutions. It’s true, we have in field technical experience since 1948. Otherwise, if you ever have any questions we would love to help! Afterwards, check out our blog for some bonus information to learn more about our amazing line of products.

Includes 1 Year Warranty.

If it wasn’t enough that these meters are built like a true juggernaut to last year after year, Dresser has included a 1 year warranty. You’re truly covered. Dresser Roots Gas Meters are made to keep working in commercial and residential locations.

Questions?

Finally, for more information on the 8C175 B3 Series you can give us a call 1-800-922-8897 or visit the Dresser Utility Solutions website anytime.

Additional information

Weight 20 lbs
Dimensions 23 × 11 × 9 in
*Connection:

2" Flanged, 1-1/2" Nippled
